Automatic car safety inspection system,Under Vehicle Inspection System
Product name: automatic car safety inspection system
The product model: XLD - WSCDJC08
Product category: the safety inspection equipment

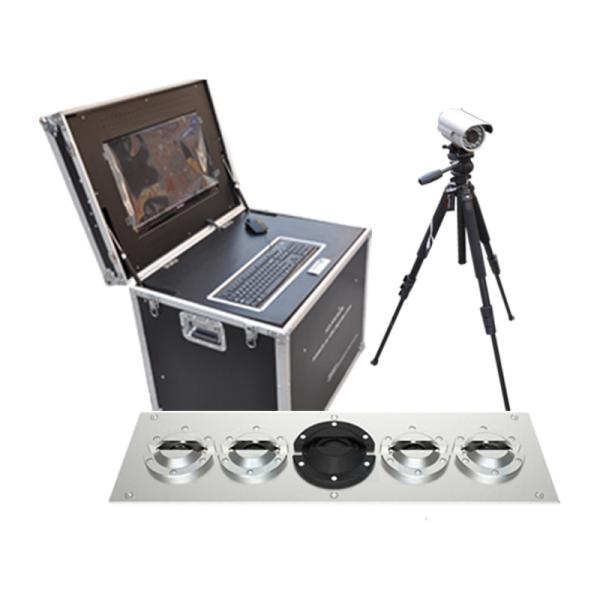

Products content: XLD - WSCDJC08 body image inspection System (Under Vehicle Surveillance System), is aimed at all kinds of car bottom, 24 hours period between work, check the hiding in the car explosives, suspicious dangerous goods, contraband and illegal personnel (smuggling, escape from prison staff, etc.), can timely and accurate display in the ipc screen, greatly improve the Vehicle chassis testing speed, can than traditional methods (such as convex mirror, video inspection mirror, etc.) faster and more accurate identification. At the same time also reduced the human resources investment.
System features:
using color scanning imaging, automatic detection through the vehicles, chassis image is clear, the output image without distortion, and USES the large size high
definition industrial display check vehicle chassis image; vehicle to 1 to 30 km/h speed through the body image acquisition device,
and in a second, the system automatically highdefinition complete vehicle chassis image;
suitable for different size vehicle bottom image acquisition, body image by date time automatic in the appropriate folder; special body check software practical, simple operation, can advance images automatic brightness and distortion correction, and have to do image local and full scale, brightness and processing functions, through a magnifying glass to the bottom vehicle local amplification, software can in WINDOWS9X, 2000,, ME, XP operating systems use;
establish vehicle database and information management system. Has the vehicle counting function, when the automobile chassis through the body image acquisition unit, the system will automatically according to the meter
Application:
This product is widely used in airport, government, in a prison, bank, reservoir, the embassy, military, customs, border, the public security organ security, anti-terrorist key place and long-term or temporary safety inspection, the key parts of the toll station car park entrance examination, inspection and large-scale meetings, activities of pass in and out of the motor vehicle safety inspection.
Technical parameters:

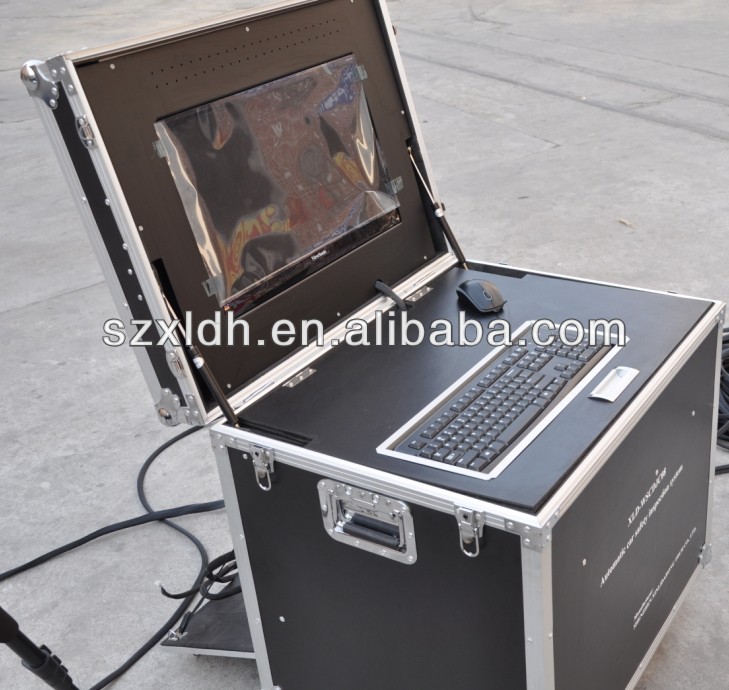

Host computer
Working voltage: AC110-240 v 5 o / 60 hz
Working current: 3 a
Working temperature: - 20 °C ~ 55 °C

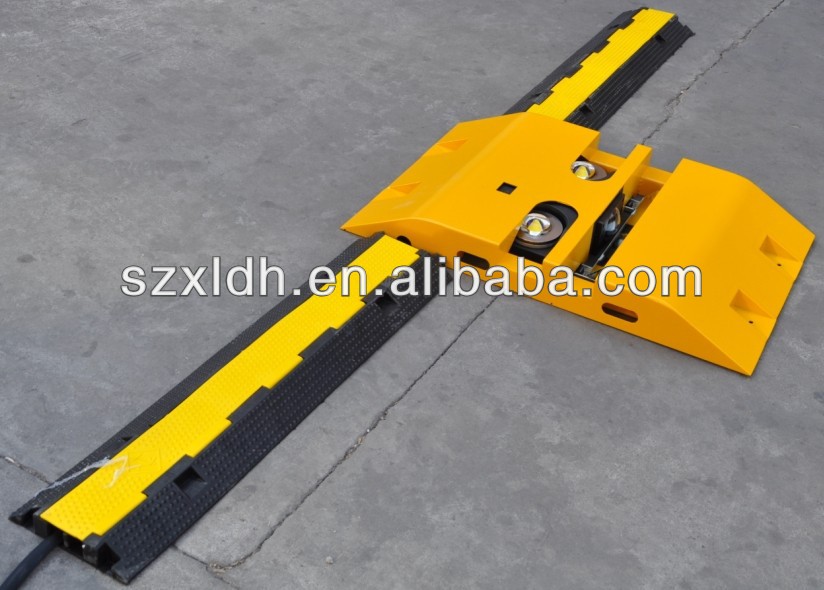

body scanner
Working voltage: AC220V 5 o / 60 hz
Working current: 2.2 A
Working temperature: - 20 °C ~ 55 °C

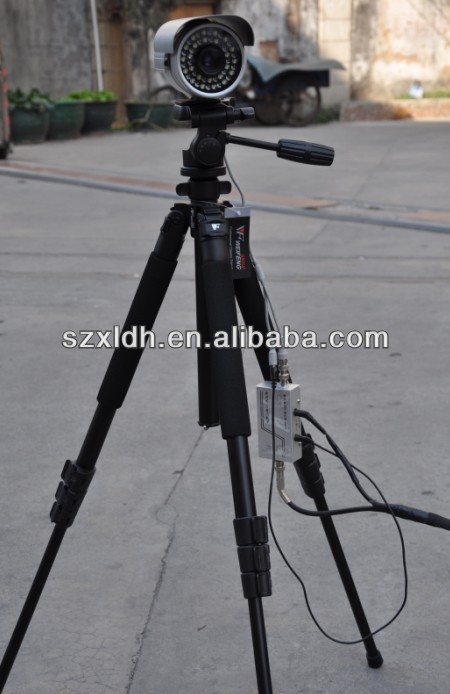

license plate acquisition equipment
Working voltage: AC24V
Working current: 500 ma
Working temperature: - 20 °C ~ 55 °C
